WA-150DT

Compressed air cleaner wellair-DT series. Auto drain ensures smooth discharge of debris and oil laden condensate.

Maximum operating flow rate: 150 (Nl/min).
Operating pressure range: 0.1~1.0(Mpa).
Guaranteed pressure resistance: 1.5 (Mpa)
Fluid temperature: 5~65(°C)

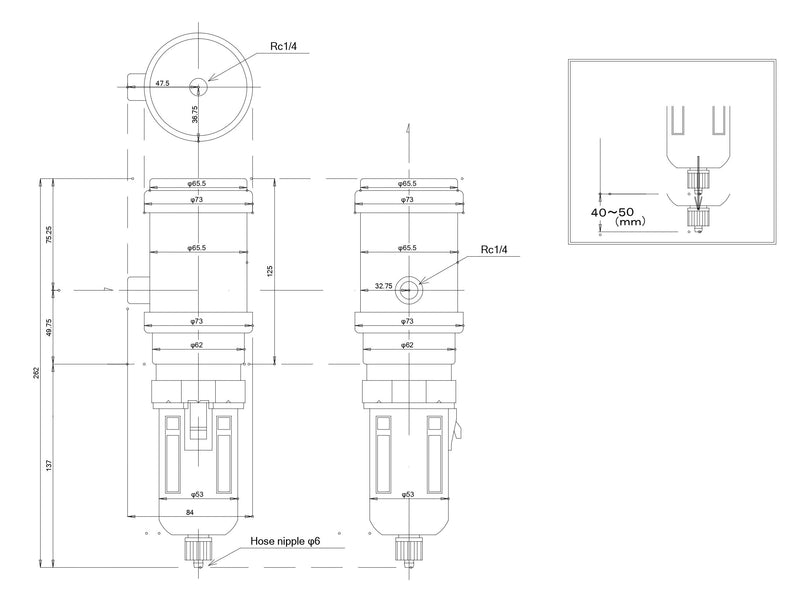

Condensate outlet connection bore hose nipple diameter: 6 mm
Air pipe connection diameter: 1/4 (Rc)
Weight: 0.59(kg)
